NICOR PRMC1120 PrimeChime Plus 2 Mini- Video Compatible Doorbell Chime Kit
NICOR PRMC1120 PrimeChime Plus 2 Mini- Video Compatible Doorbell Chime Kit

Alternative Views:
Our Price: $56.00


Free Shipping
Product Code: PRMC1120

Click to view another Add-On

 2 Standard White Lighted Buttons (PRMC)
Stucco Button - White (PRMC1120SBWH) [Add $7.00]
Stucco Button - Polished Brass (PRMC1120SBPB) [Add $7.00]
Stucco Button - Nickel (PRMC1120SBNK) [Add $7.00]
Stucco Button - Architectural Bronze (PRMC1120SBBZ) [Add $7.00]
Stucco Button - Antique Brass (PRMC1120SBAB) [Add $7.00]
Doorbell Button - White (PRMC1120DBWH) [Add $7.00]
Doorbell Button - Nickel (PRMC1120DBNK) [Add $7.00]
Doorbell Button - Copper (PRMC1120DBCO) [Add $7.00]
Doorbell Button - Black (PRMC1120DBBK) [Add $7.00]

Qty:
Description


NICOR PRMC1120 PrimeChime Plus 2 Mini- Video Compatible Doorbell Chime Kit


The PrimeChime Plus 2 Mini® keeps all the popular features of NICOR’s PrimeChime Plus 2® electronic doorbell while shrinking the unit to fit into a single gang junction box. Compatible with many video doorbell systems, the PRMC combines both line voltage and low voltage into a single unit and offers a paintable, screwless faceplate for simple installation and a seamless look. Separate melodies for front and rear doors allows you to keep track of exactly which door to answer. NICOR’s lighted button makes your doorbell easily visible to visitors at all times of day, welcoming them to your home. The PRMC is also compatible with many video doorbell systems, increasing the security of your home with a reliable, minimal door chime kit.




For a Formal Estimate Call: 888-560-0759 or E-Mail: [email protected]

When checking out you can decide to add a Stucco Button to this product to replace the white lighted rectangular doorbell button that comes standard with this product as displayed in the picture. The Stucco Button (PRMC1120SB) is available in many colors: Polished Brass (PRMC1120SBPB), White (PRMC1120SBWH), Nickel, (PRMC1120SBNK), Antique Brass (PRMC1120SBAB), or Architectural Bronze (PRMC1120SBBZ).
Features
Construction
  • ABS Housing Combines line voltage and low voltage in a single unit
  • Screwless ABS Faceplate
  • Two-wire pigtail for line voltage input
  • Multiple poke-in connectors for low voltage output for front and back doorbells

Electrical
  • Integrated transformer
  • Input: 120VAC/60Hz
  • Output: 24VAC max
  • Digital control board with speaker
  • Five selectable melodies : Ding Dong, Westminster, 3 note, 5 note, and 7 note
  • Five selectable volume levels
  • Voice guided setup during selection

Finish
  • Matte White
  • Faceplate is field paintable

Installation
  • Installs quickly into most non-metallic single-gang junction boxes
  • Includes two lighted rectangle doorbell buttons

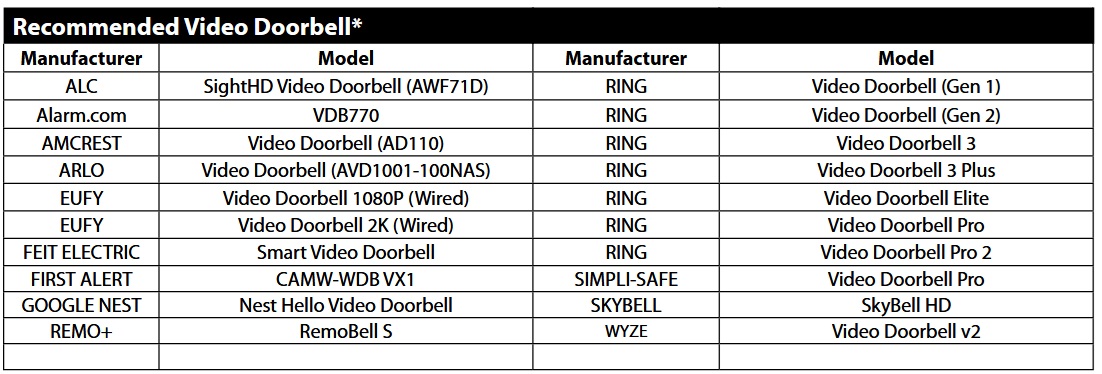

  • Compatible with many popular video doorbell buttons (see compatibility list and/or test for compatibility before installation)
  • Able to drive up to 2 video doorbells at the same time.
  • Daisy chain up to 10 PrimeChime Plus Mini® units (max 400ft total wire length)* (*each chime requires individual 120VAC input)
  • Doorbell buttons connect with 18ga-22ga solid wire (max 100ft distance)
  • For installations where higher power surge may be possible, NICOR recommends installing additional surge protection at the electrical distribution panels

Warranty
  • 1 year limited system warranty standard
  • Warranty does not cover product failure due to an overvoltage event (power surge)
