Motorola VB400 Body-Worn Camera

Motorola VB400 Body-Worn Camera

Alternative Views:

Product Code: VB-440-64-KF-N

Description Technical Specs

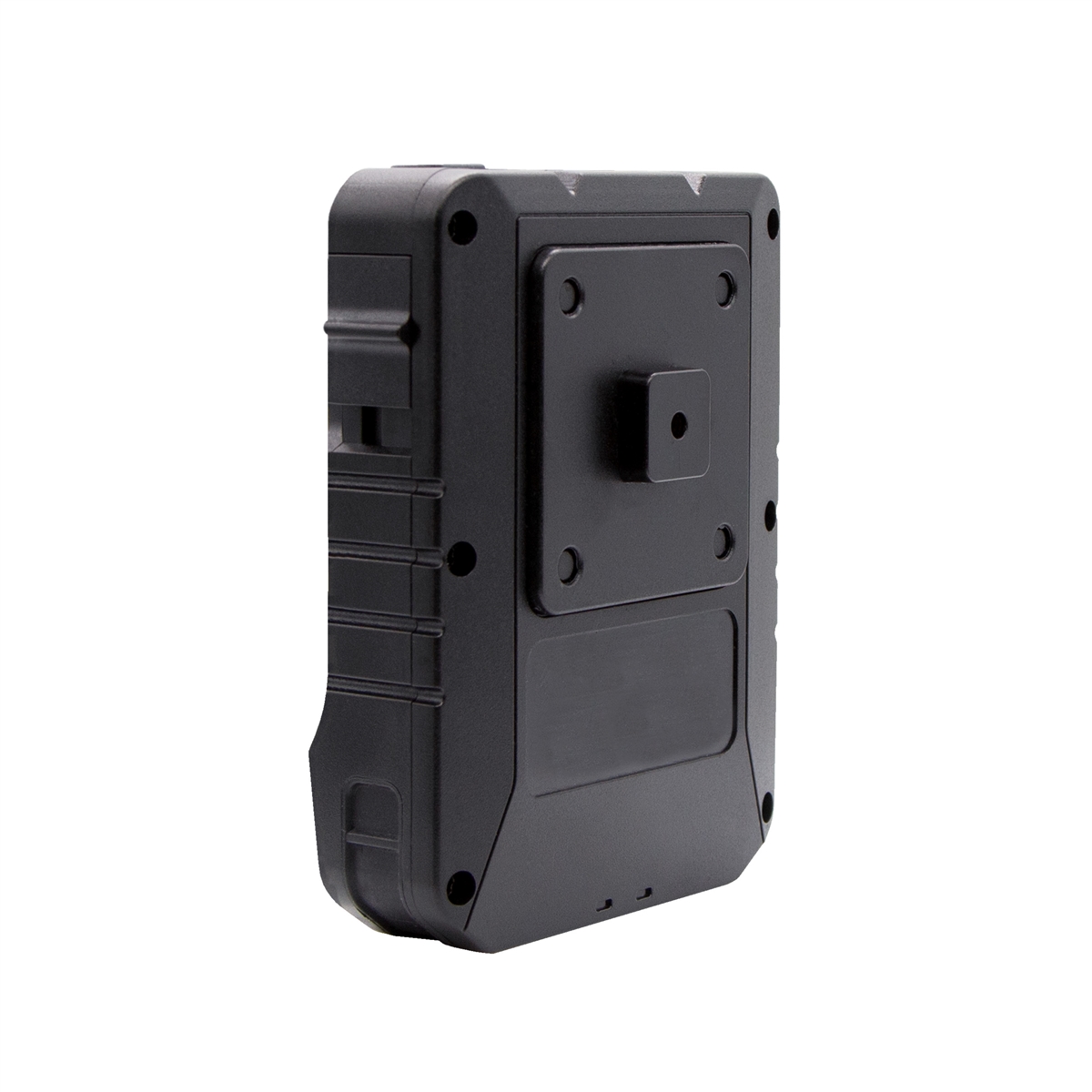

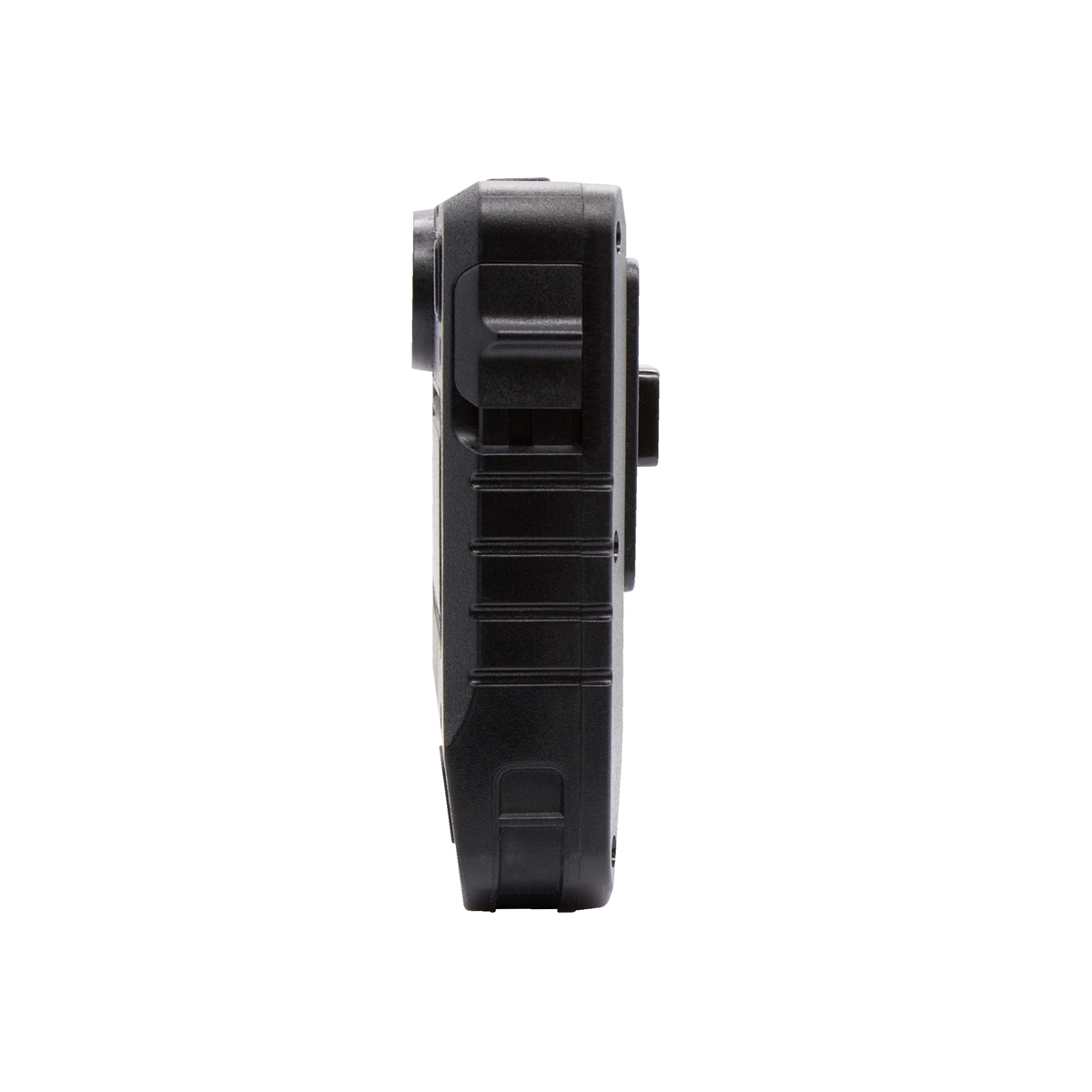

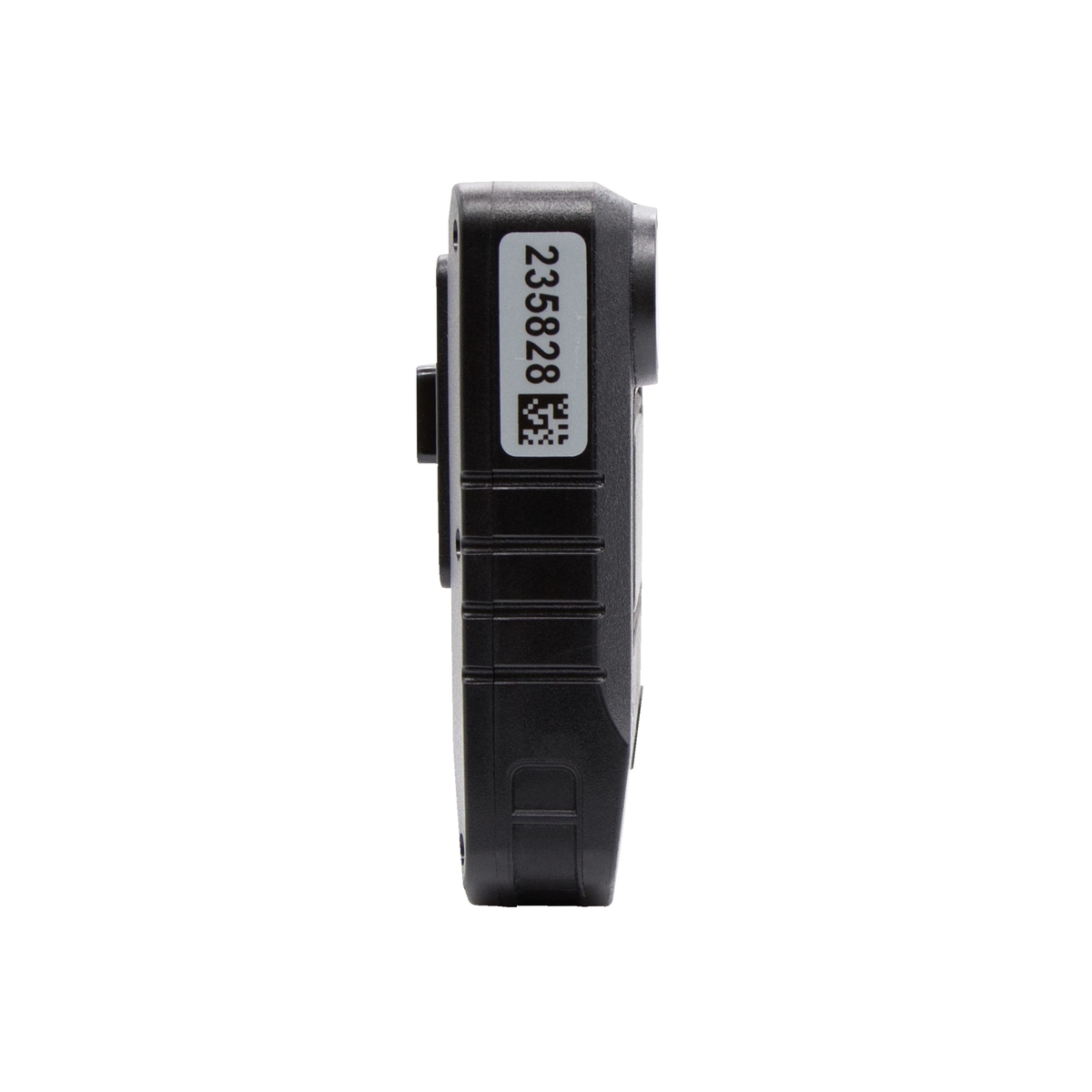

Motorola VB400 Body-Worn Camera

The Motorola VB400 Body Camera provides high performance recording and storage combined with top durability and an IP67 water submersible rating. With multiple ways to connect, the VB400 is a versatile solution packed with powerful features. Enjoy full-shift battery life, pre-recording capabilities, full HD recording in 1080p with 120 degree view, Bluetooth and Wi-Fi connectivity, GPS and secure file encryption, and four flexible mounting options. Meet the demands of any situation with live-streaming and peer-assisted recording. The VB400 provides 32GB of storage and up to 12 hours of recording all in a sleek, lightweight design that is comfortable for the user and easy to use. The VB400 is versatile enough to meet the needs of any business, and is especially popular for security teams, airports, transportation and logistics, parking enforcement, local government, retail, and healthcare, but can benefit anyone that wants to keep employees accountable and safe. The VB400 comes with a 1-year warranty and requires VideoManager Enterprise License or VideoManager Cloud Service.

For a Formal Estimate Call: 888-560-0758 or E-Mail: [email protected]

Standard Equipment
  • Motorola VB400 Body Camera
  • Battery included inside body - not removable
  • Whichever 1 of 4 mount types selected at checkout

  • Typical Usage: Shift-long battery life and high-quality video evidence capture
  • Management Software: VideoManager 12.1 or later. Requires VideoManager Licence.
  • Warranty: 1 year return-to-manufacturer warranty. For support relating to VideoManager, Software Assurance is required

  • Battery: Integral, not user serviceable
  • Battery Type: Lithium–polymer
  • Battery Recharging Times: Typically recharges in less than 8 hours
  • Battery Recharging Capacity: Up to 12-hrs when used with optimum camera settings

  • Audio Capture: Dual Microphone

  • Switches: Five software-configurable switches (top switch, two small front switches and large central switch) and a slide switch (side mounted).
  • Day / Night Operation: Supports low light conditions to 0.2 lux
  • Lens Capture Angle: 120° horizontal, 65° vertical, 140° diagonal
  • Notification: Configurable LEDs, audible and vibrationalerts and notifications.

  • Peer Assisted Recording: Configurable policy to enable VB400 to record when nearby peers are recording.
  • Holster Sensor Option: Detect the presence of a firearm, and notify the VB400 when it’s unholstered
  • Pre / Post-Record Facility: Full-shift pre / post-record, with up to 2 minutepre / post-recording buffer.
  • RFID Assignment: Use RFID to allocate cameras to users.This enables efficient pooled issue of cameras,or RFID controlled personal allocation.
  • Bookmark Footage: Instantly mark important video footage by pressing a configured switch or button
  • Memory Capacity: 16GB
  • Recording Status / User Notification: Vibration, visual and audible notification
  • GPS: Integral GPS receiver. Mark video streams and recordings with location, and provide location data to management software
  • Bluetooth®: BT 2.1 + EDR, BLE 4.2.

  • Video Recording Format: H.264 format with H.265 in future release
  • Resolution: 1920 x 1080 p, 1280 x 720 p and 640 x 360 p
  • Frame Rate: 25 or 30 frames per second
  • Recording Storage Capacity: 64GB


  • Ingress Protection: IP67
  • Environmental Temperature Operational Rating: Operating: Recordings View
  • Drop Tested: Copy and Deletion Ability

  • Wi-Fi Specifications: 802.11 a/b/g/n (2.4GHz & 5GHz)
  • Wi-Fi Security: WPA2-PSK
  • Wi-Fi Streaming: 640x360 25 or 30fps

  • Network Data Security on USB Storage Media: VB400 does not appear as a USB storage device,and cannot receive files whilst connected to aWi-Fi network.
  • Digital Evidence Integrity Chain: Full audit trail with generated check-sums andwatermarked evidential output
  • Audit Trail: Usage, operations and recording details all audit-logged and indexed
  • Video DownloadingProtected by Encryption: AES, encrypted keys specific to base station
  • Recordings View, Copy and Deletion Ability: The VB400 wearer cannot access, view or deleteany recordings directly from the device
  • Storage Media Access: Sealed unit with no user access to storage media
